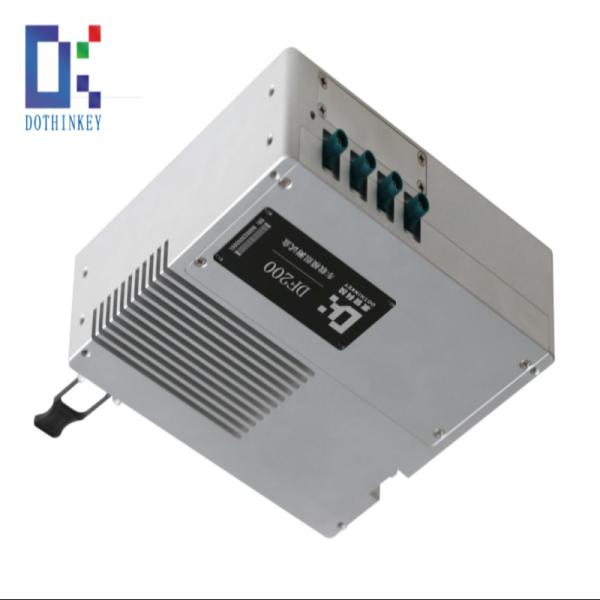

Automotive Calibration Aging Frame DF200 Image Grabber for EMC Testing ESD

Key Features

1. Power Supply & Voltage Range

   • Supports 0.8–18V module power supply configuration for broad compatibility.

2. Real-Time Monitoring & Diagnostics

   • Current monitoring for power management.

   • Frame rate/error frame display for performance tracking.

   • Link error statistics and decoding error statistics for troubleshooting.

3. Image Capture & Power over Coax (POC)

   • Capture and save full-channel images for analysis.

   • Powered via POC (Power over Coax) for simplified cabling.

4. Flexible Deserialization Solutions

   • Compatible with MAXIM/TI and most market-available serialized automotive modules.

   • Configurable decoupling to match specific module requirements.

5. High-Speed Fiber Optic Communication

   • 40Gbps fiber support (using 1–4 cables).

   • Backward-compatible with 10G network cards; bandwidth scales with connected 10G ports.

6. Automotive-Grade EMC Testing Support

   • Validates modules against automotive EMC standards (requires the module itself to meet specifications).

Dothinkey is an innovative high-tech company, designer and manufacturer of image acquisition components. We are specialized in image acquisition, transmission, encod-ing and decoding, providing image grabber, software and overall solutions.
Since our establishment in 2006, we have been focusing on the camera testing industry and willnever stop. Based on customer requirements, we design, develop and manufacture image grabber products continuously, winning industry reputation with high-quality and professional service and becoming a leading brand in camera test industry.
We are committed to building an open and collaborative ecosystem and providing services for our customers. Dothinkey will adhere to the core values of “integrity, responsibility, passion, inovation, win-win". and provide more competitive system products and solutions forour customers.
