5Gbps Automotive Imaging: Internal Calibration and AA Test Solution

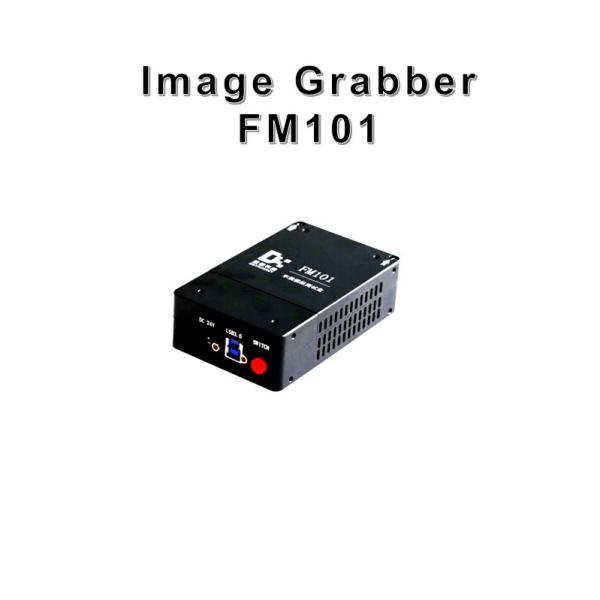

FM101 Automotive Module Test System Features

1. Single-Camera Testing Solution

   • Supports both FAKRA coaxial (single-ended) and STP differential interfaces

   • Designed specifically for automotive camera module validation

2. Comprehensive Monitoring & Diagnostics

   • Real-time current consumption monitoring

   • Frame rate measurement and analysis

   • Detailed error reporting:
     • Frame errors
     • Link errors
     • Decoding errors

3. Advanced Image & Power Management

   • Full-image capture and storage capability

   • Integrated Power-over-Coax (POC) support:
     • Power supply delivery
     • Voltage measurement

   • Dedicated LED power supply for vehicle lighting modules

4. Flexible Configuration Options

   • Selectable decoupling solutions

   • Compatible with major automotive standards:
     • MAXIM serialization
     • TI serialization

   • Supports most market-available serialized modules

Programmable power supply range and accuracy
